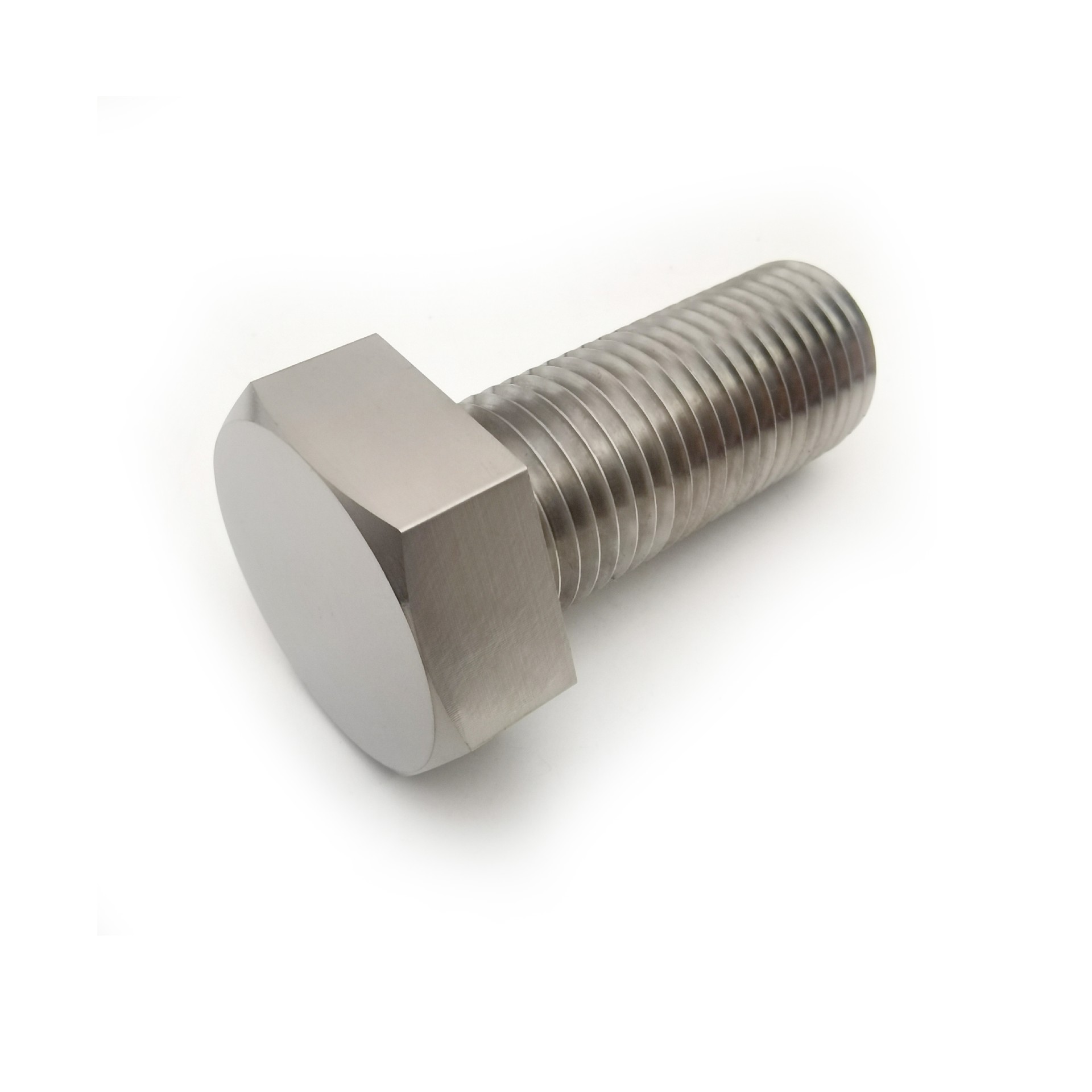

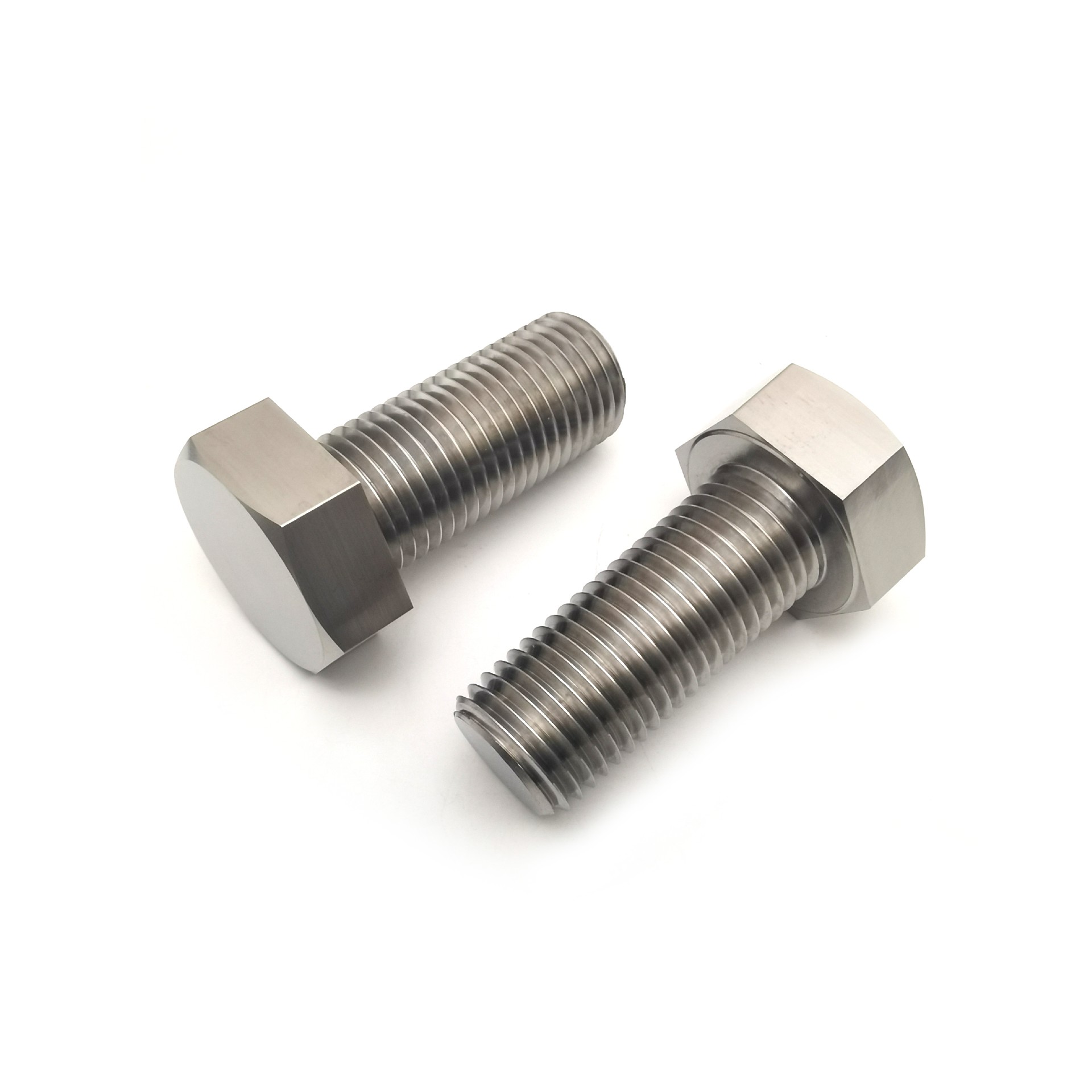

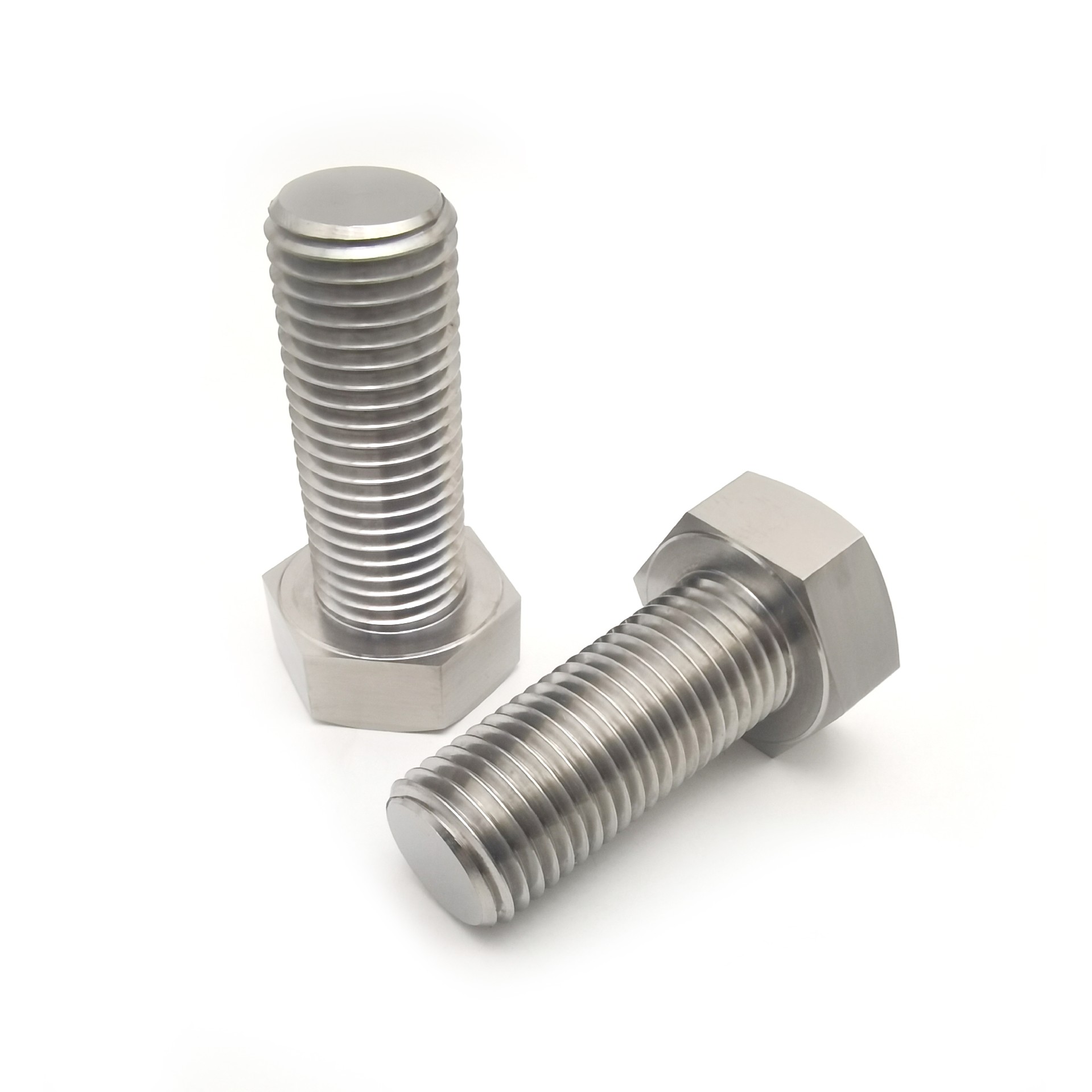

Product Name: DIN933 Titanium Hex Head Bolt M10×1.25mm

Material: Gr5 Titanium/Ti-6Al-4V

Standard: DIN 933

Head Type: Hex

Drive Style: External Hex

System of Measurement: Metric

Thread Direction: RightHand

Thread Size: M10

Thread Pitch: 1.25mm

Thread Fit: Class 6g

Length: 12mm-150mm

Threading: Fully Threaded

Thread Spacing: Coarse

Head Width: 17mm

Head Height: 6.4mm

Density: 4.5g/cm3

Tensile Strength: 130,000psi

Hardness: Rockwell C36

Color: Titanium Primary

Surface: Plain

Equivalent standard: ISO 4014, AS1110.2, EN24017, GOST R50793, JIS B1180, NF E25-114

Country of Origin: China

DIN933 Titanium hex bolt is the most common and widely used Titanium alloy bolt, using aero-grade Gr5 Titanium (Ti-6Al-4V) as the raw material, with the advantages of lightweight, high strength, corrosion resistance, and high-temperature resistance.

Based on DIN933, we can customize special Titanium hex bolts according to the drawings or samples provided by customers.

We can customize Titanium hex bolt in different colors using PVD and anodizing technology.

BJCJTi-Professional titanium alloy fastener manufacturer
