DIN7991 Titanium Hex Socket Countersunk Head Screw M6 Gr5 TI | BJCJTi

Gr5 Titanium
Countersunk
Hex Socket
M6
1mm
8mm-100mm
DIN7991
Current Stock:

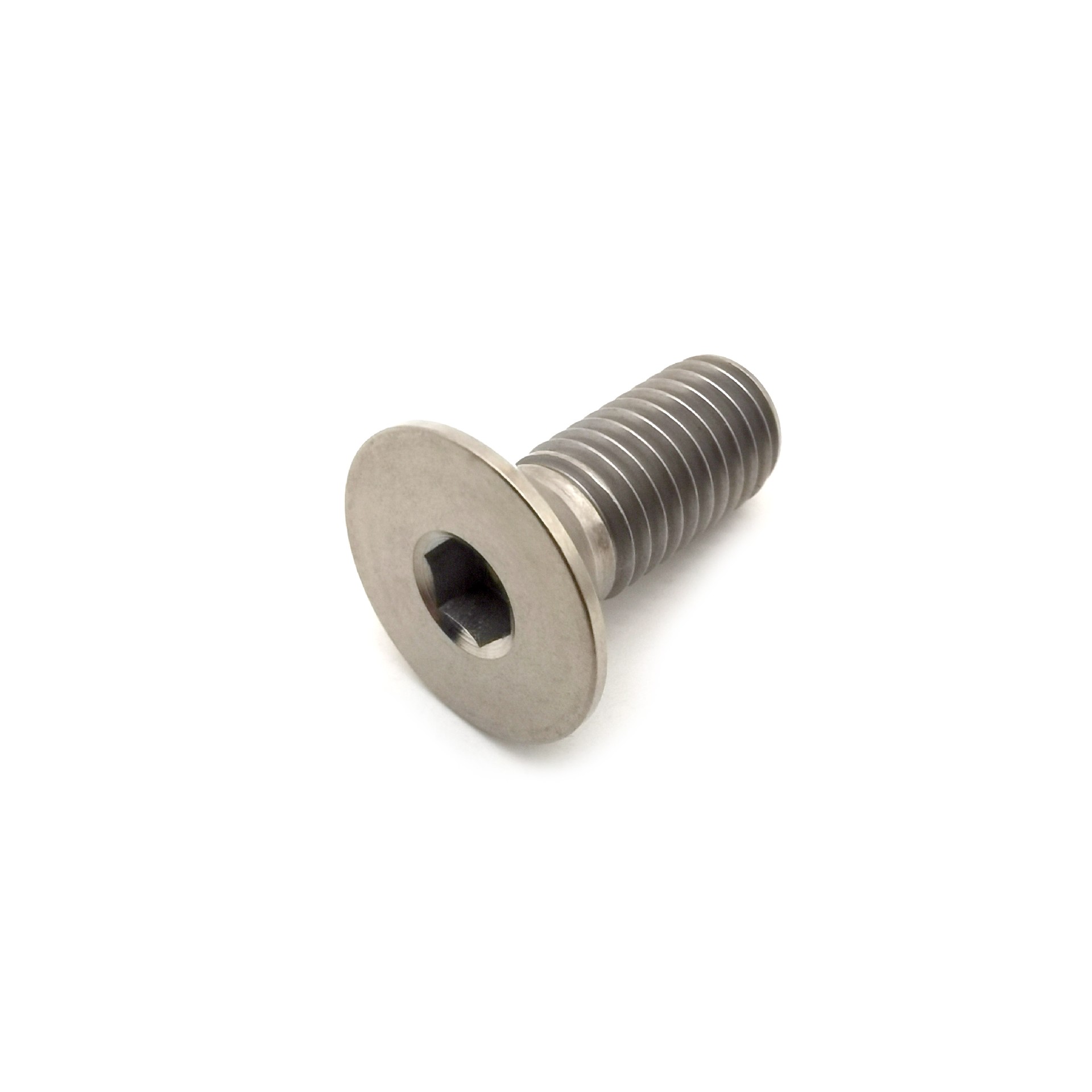

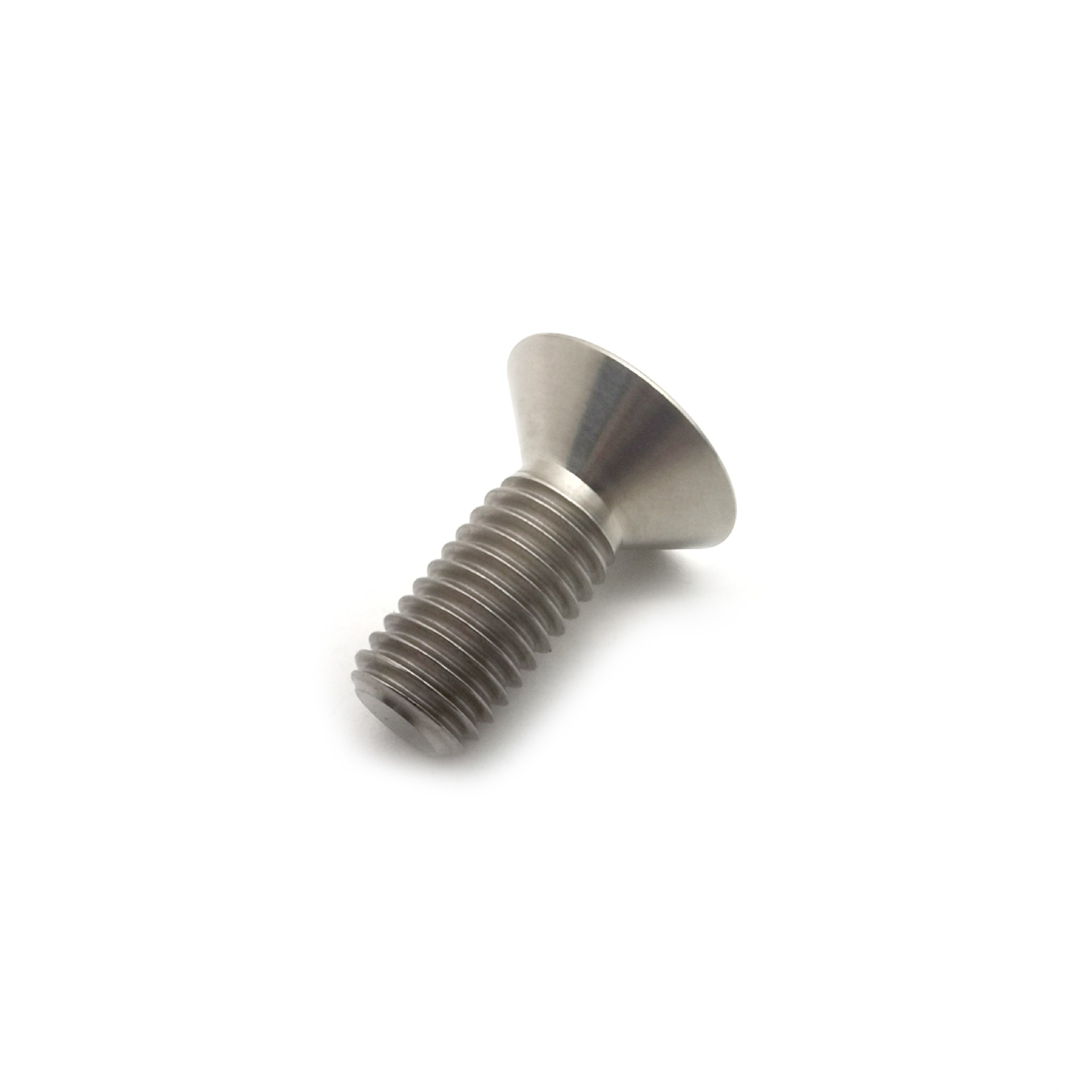

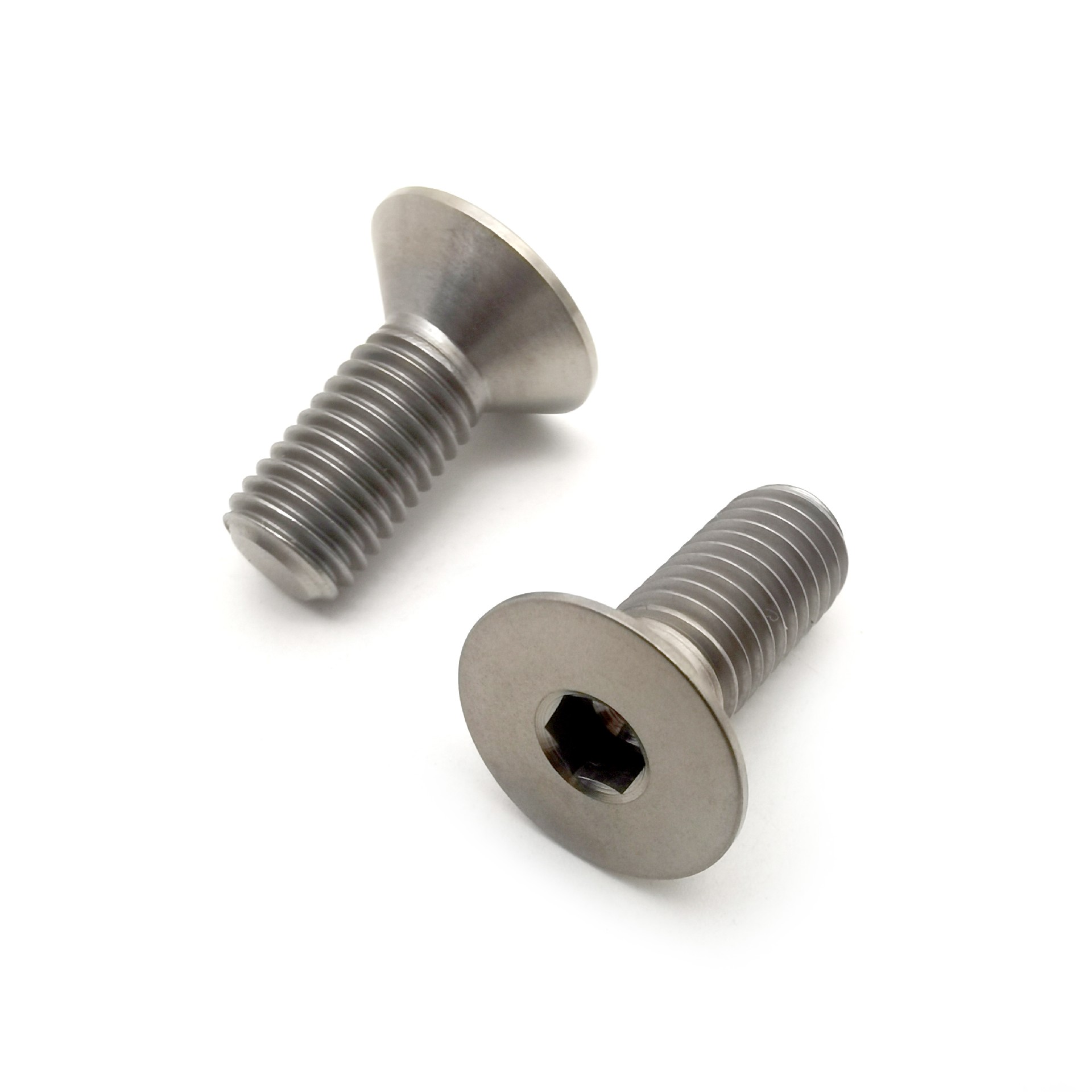

Product Name: DIN7991 Titanium Hex Socket Countersunk Head Screw M6

Material: Gr5 Titanium/Ti-6Al-4V

Standard: DIN 7991

Head Type: Countersunk

Drive Style: Hex Socket

System of Measurement: Metric

Thread Direction: RightHand

Thread Size: M6

Thread Pitch: 1mm

Thread Fit: Class 6g

Length: 8mm-100mm

Threading: Fully Threaded

Thread Spacing: Coarse

Head Width: 12mm

Head Height: 3.3mm

Countersunk Angle: 90°

Density: 4.5g/cm3

Tensile Strength: 130,000psi

Hardness: Rockwell C36

Color: Titanium Primary

Surface: Plain

Country of Origin: China


BJCJTi- Professional titanium alloy fastener manufacturer.

DIN7991 titanium hex socket countersunk head screw is the most common titanium screw, which is also our main product. The raw material is aerospace grade Gr5 Ti (Ti-6Al-4V), which has the advantages of light weight, high strength, corrosion resistance, and high-temperature resistance.

We can customize titanium countersunk screws. titanium countersunk screws in different colors can also be customized using anodizing and PVD.
