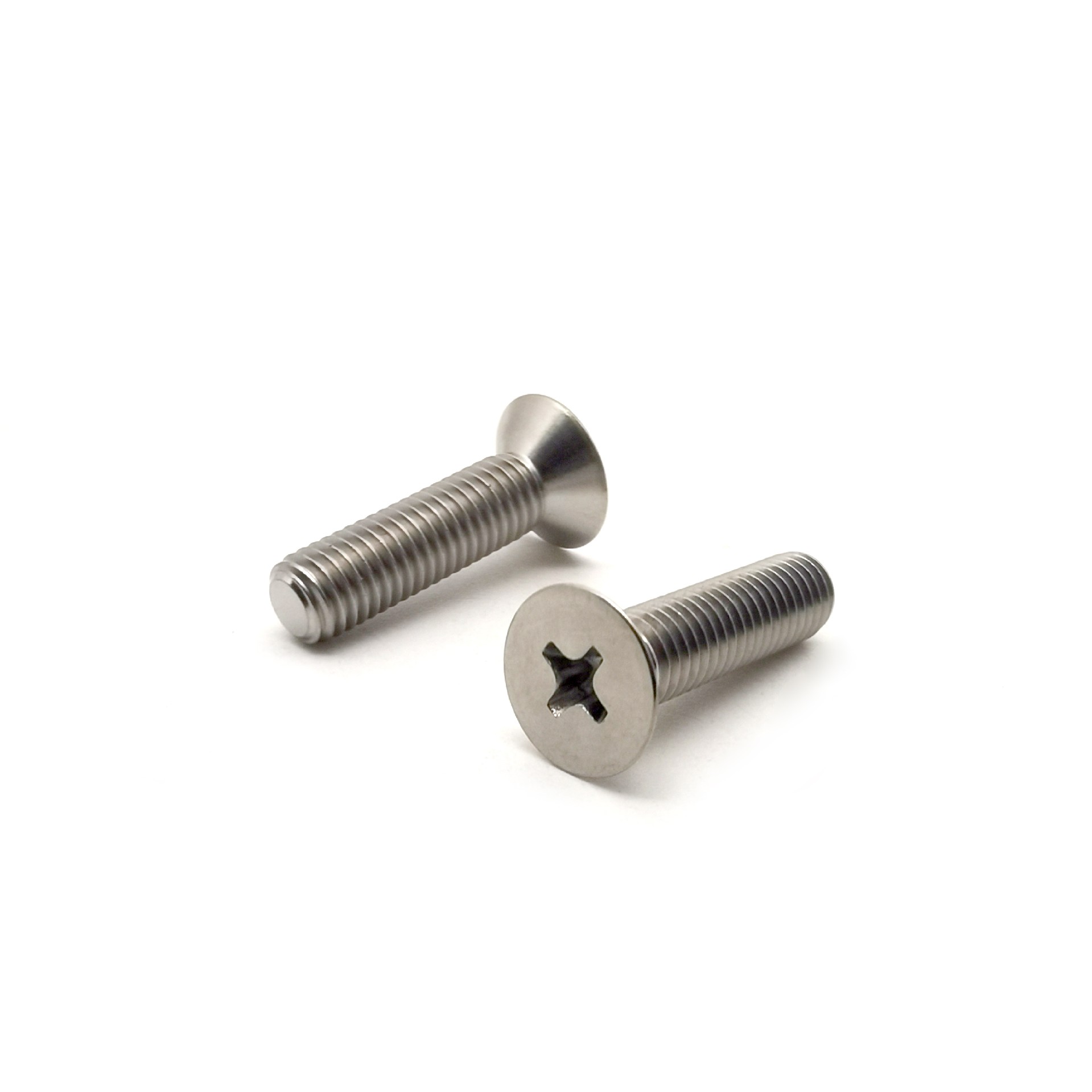

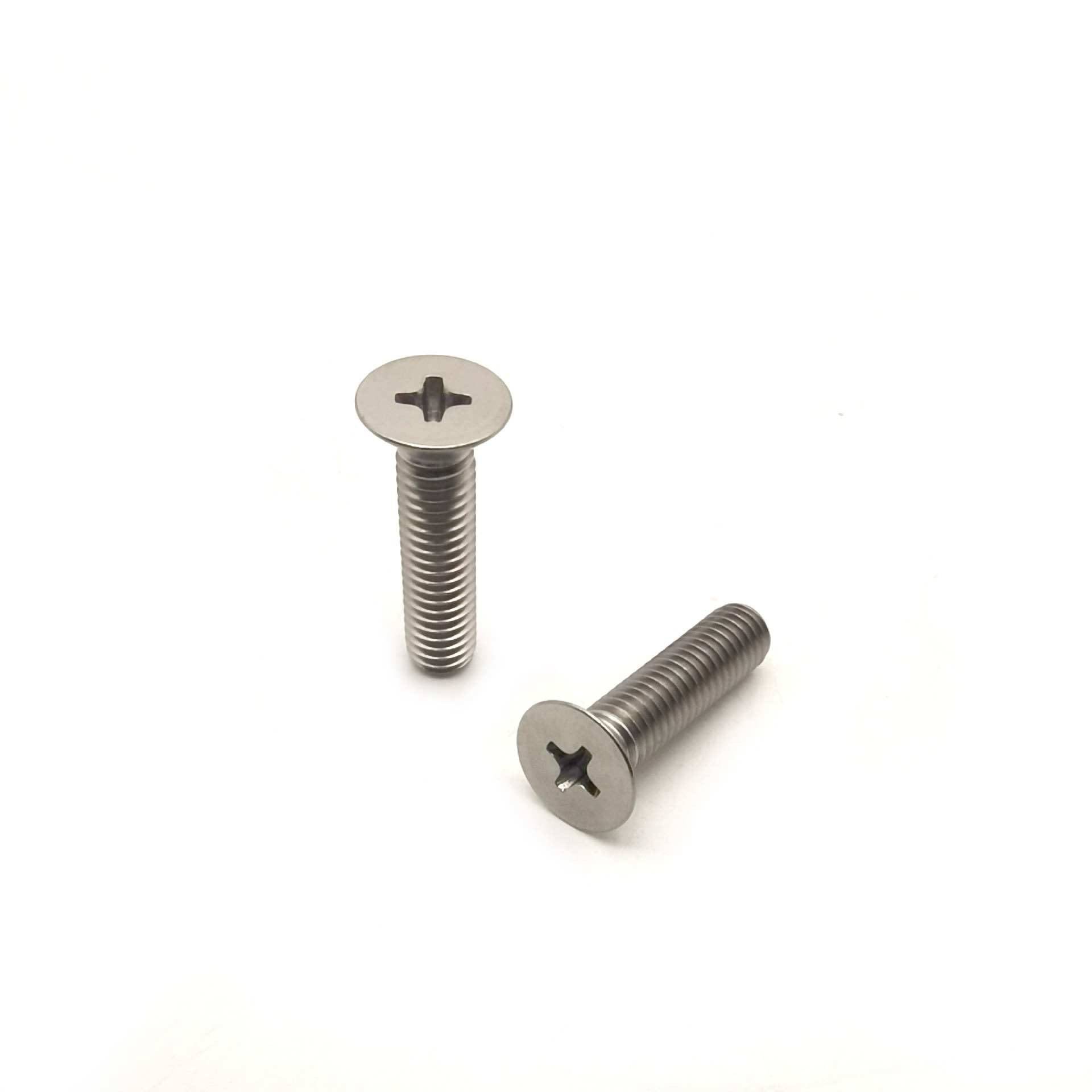

Product Name: DIN965 Titanium Philiips Countersunk Head Screw M8×1.25mm×20mm

Material: Gr5 Titanium/Ti-6Al-4V

Standard: DIN 965

Head Type: Countersunk

Drive Style: Phillips

System of Measurement: Metric

Thread Direction: RightHand

Thread Size: M8

Thread Pitch: 1.25mm

Thread Fit: Class 6g

Length: 20mm

Threading: Fully Threaded

Thread Spacing: Coarse

Head Width: 16mm

Head Height: 4.4mm

Countersunk Angle: 90°

Density: 4.5g/cm³

Tensile Strength: 130,000psi

Hardness: Rockwell C36

Color: Titanium Primary

Surface: Plain

Country of Origin: China

BJCJTi- Professional titanium alloy fastener manufacturer.

DIN7991 titanium hex socket countersunk head screw is the most common titanium screw, which is also our main product. The raw material is aerospace grade Gr5 Ti (Ti-6Al-4V), which has the advantages of light weight, high strength, corrosion resistance, and high-temperature resistance.

We can customize titanium countersunk screws. titanium countersunk screws in different colors can also be customized using anodizing and PVD.

Our company has three different titanium alloy fastener manufacturing processes: hot heading, cold heading and machining. We have Swiss-type machines, machining centers, lathes and other production equipment for titanium alloy fastener manufacturing. We also use full-flow inspection to ensure the quality of each titanium alloy product.
