Titanium Screw DIN7985 Titanium Phillips Pan Head Screw M10 Gr5 Ti | BJCJTi

Gr5 Titanium
Pan
Phillips
M10
1.5mm
5mm-100mm
DIN7985
Current Stock:

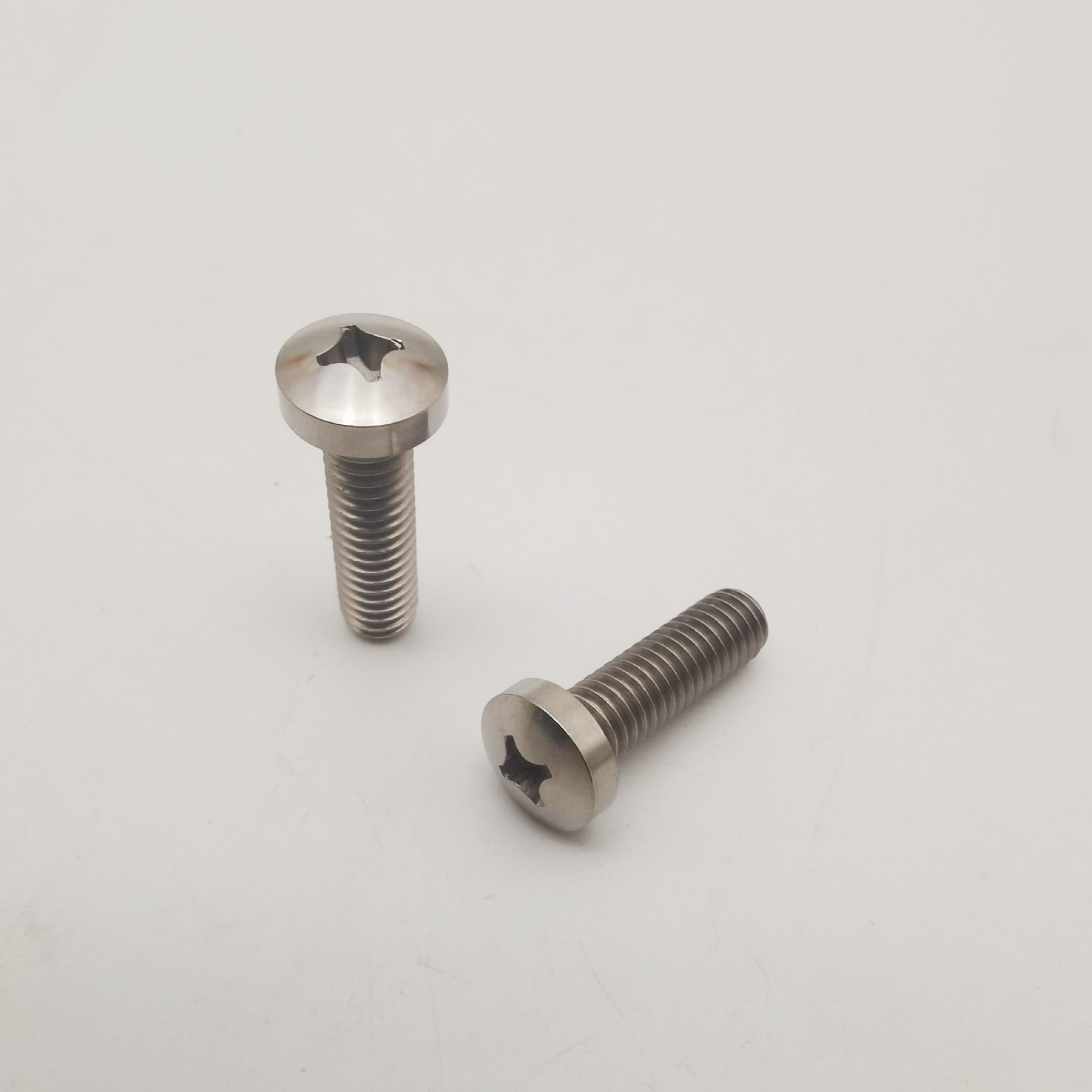

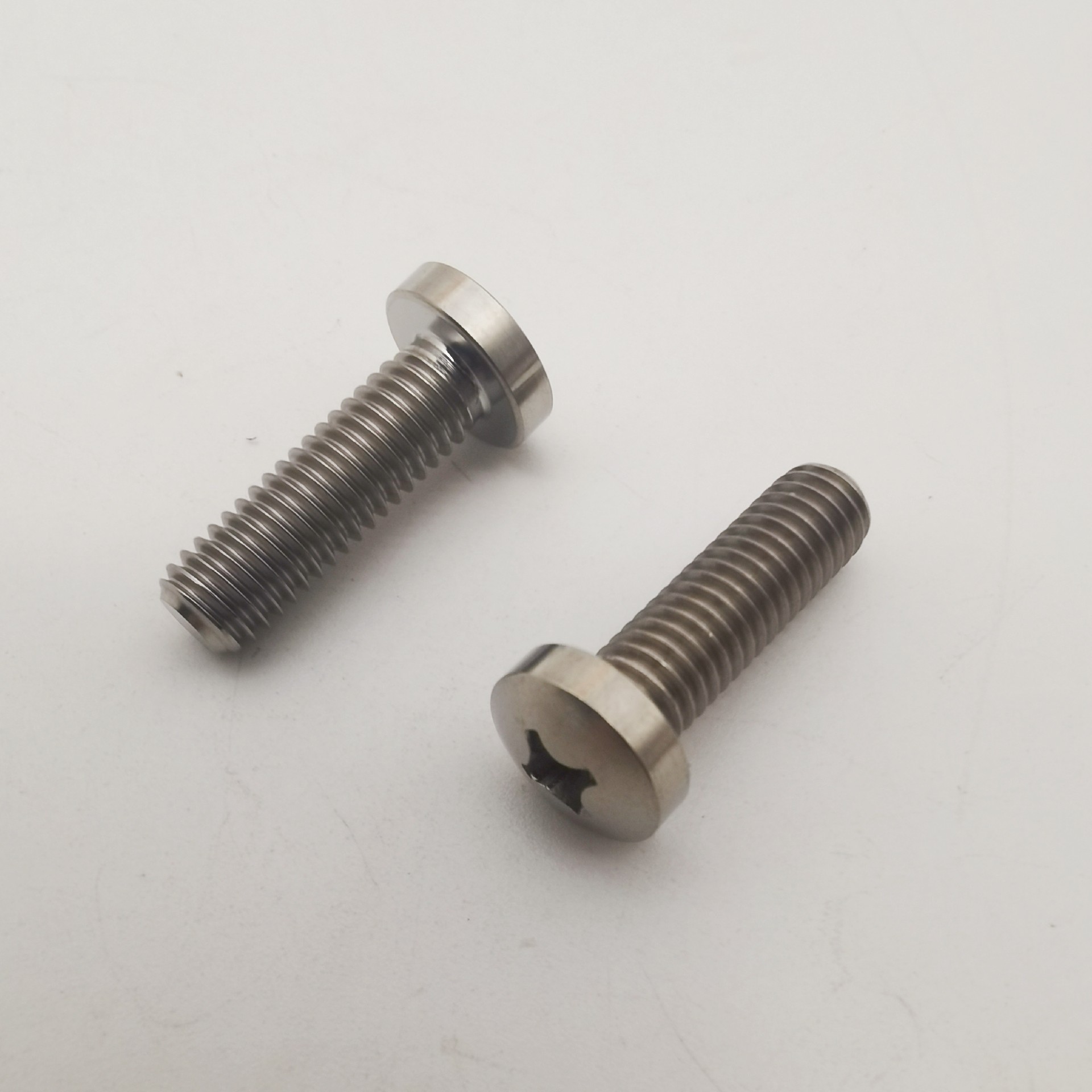

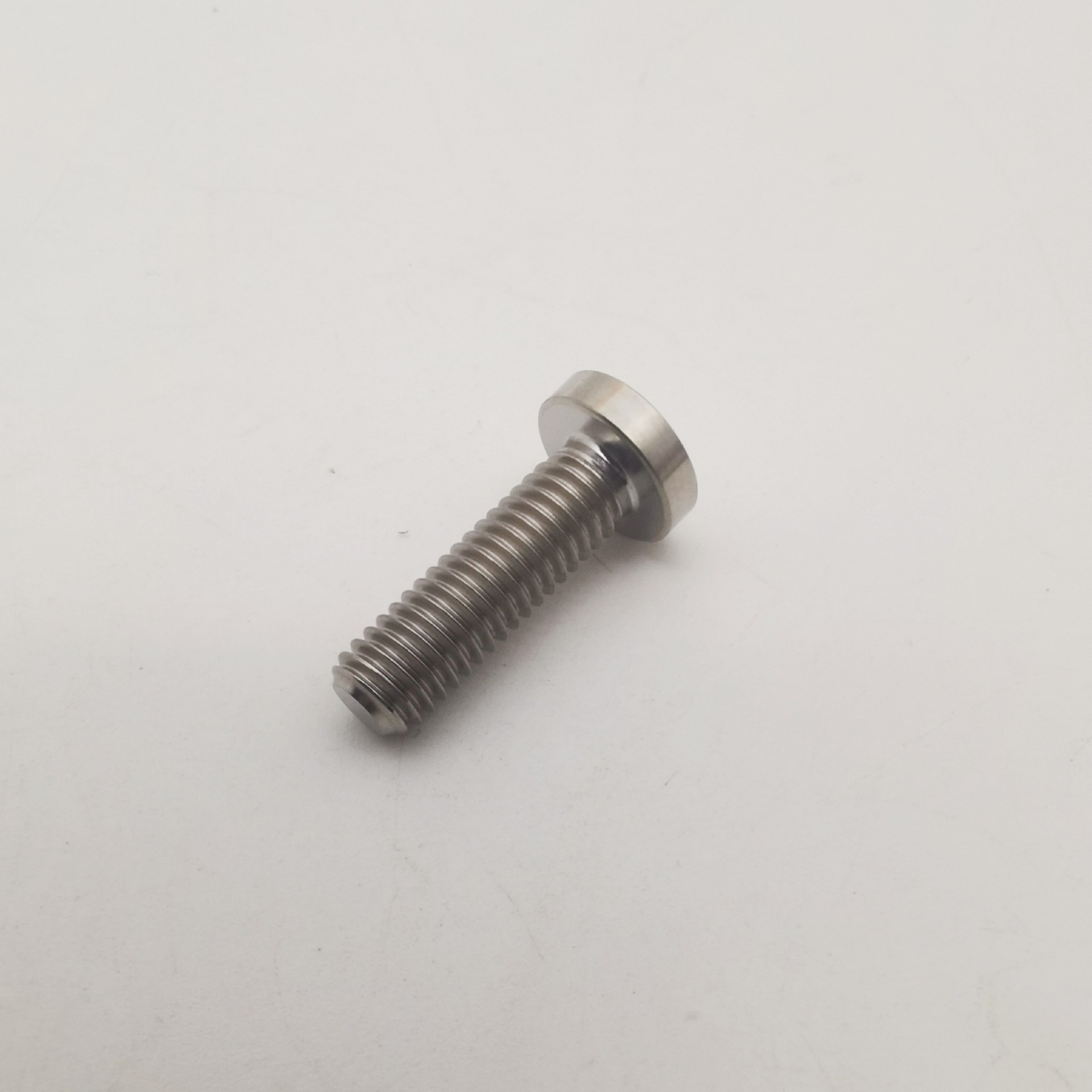

Product Name: DIN 7985 Titanium Phillips Pan Head Screw M10

Material: Gr5 Titanium/Ti-6Al-4V

Standard: DIN7985

Head Type: Pan

Drive Style: Phillips

System of Measurement: Metric

Thread Direction: RightHand

Thread Size: M10

Thread Pitch: 1.5mm

Thread Fit: Class 6g

Length: 5mm-100mm

Threading: Fully Threaded

Thread Spacing: Coarse

Head Width: 20mm

Head Height: 7.68mm

Density: 4.5g/cm3

Tensile Strength: 130,000psi

Hardness: Rockwell C36

Colour: Titanium Primary

Surface: Plain

Country of Origin: China


BJCJTi- Professional titanium alloy fastener manufacturer.

DIN7985 titanium phillip pan head screw is the most common titanium screw, which is also our main product. The raw material is aerospace grade Gr5 Ti (Ti-6Al-4V), which has the advantages of light weight, high strength, corrosion resistance and high temperature resistance.

We can customize titanium pan screw on the basis of DIN7985. titanium pan screw in different colors can also be customized using anodizing and PVD.
