DIN6921 Titanium Hex Flange Bolt M6 Gr5 Ti Bolt | BJCJTi

Gr5 Titanium
Flange
Hex
M6
1mm
8mm-100mm
DIN 6921
Current Stock:

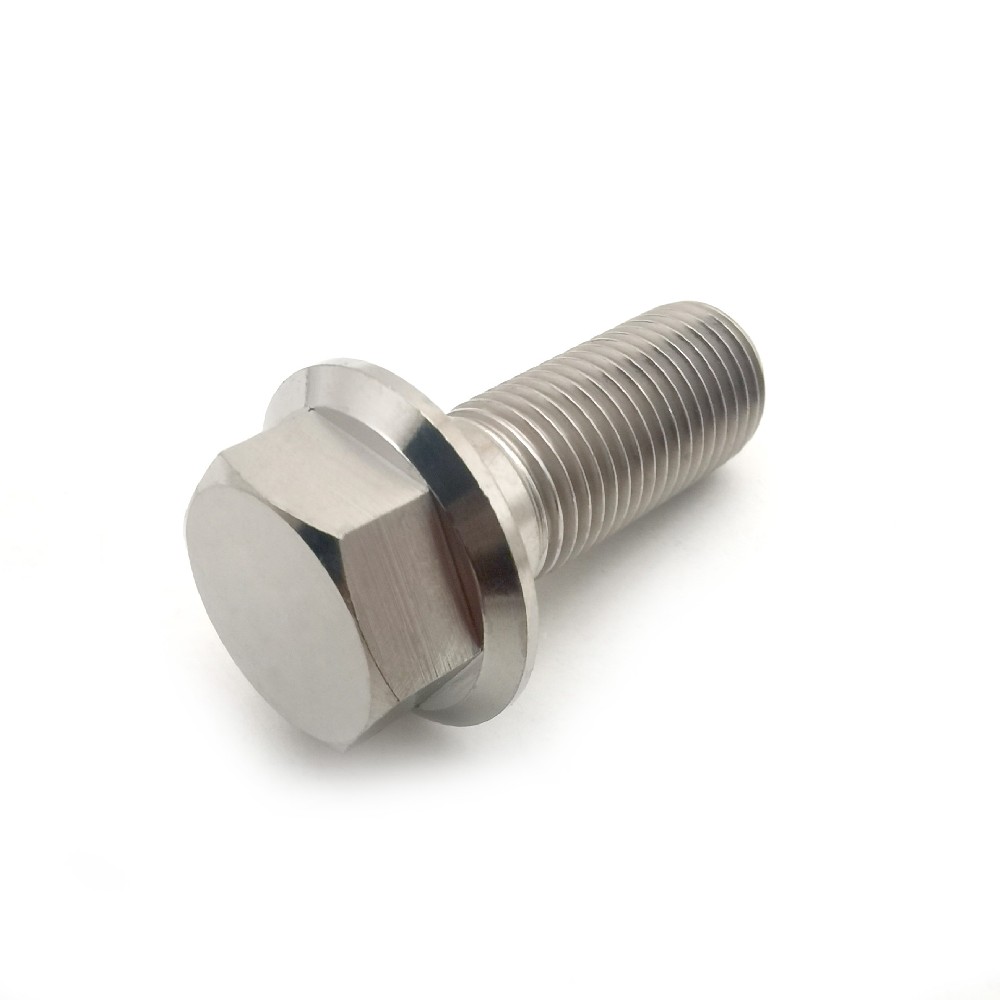

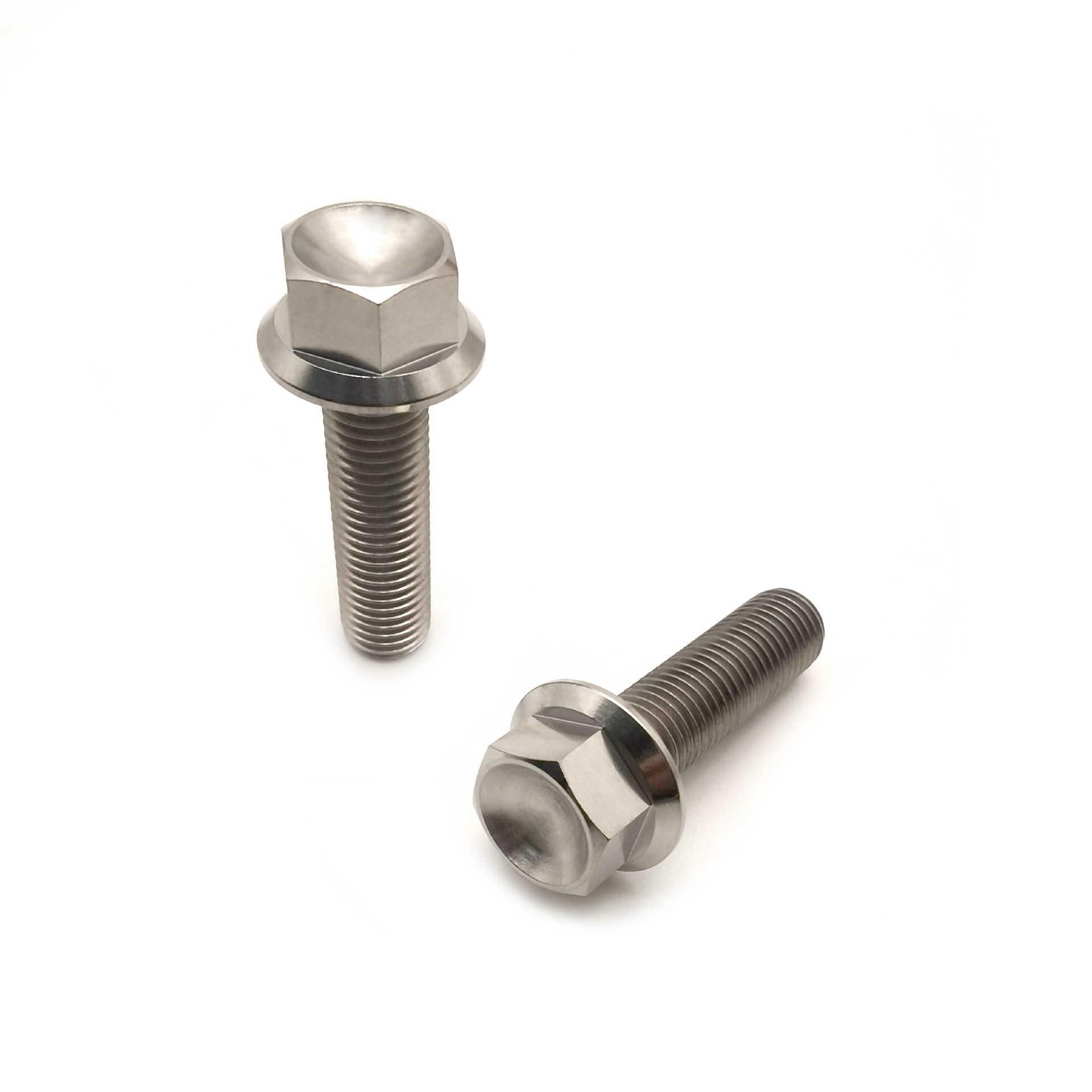

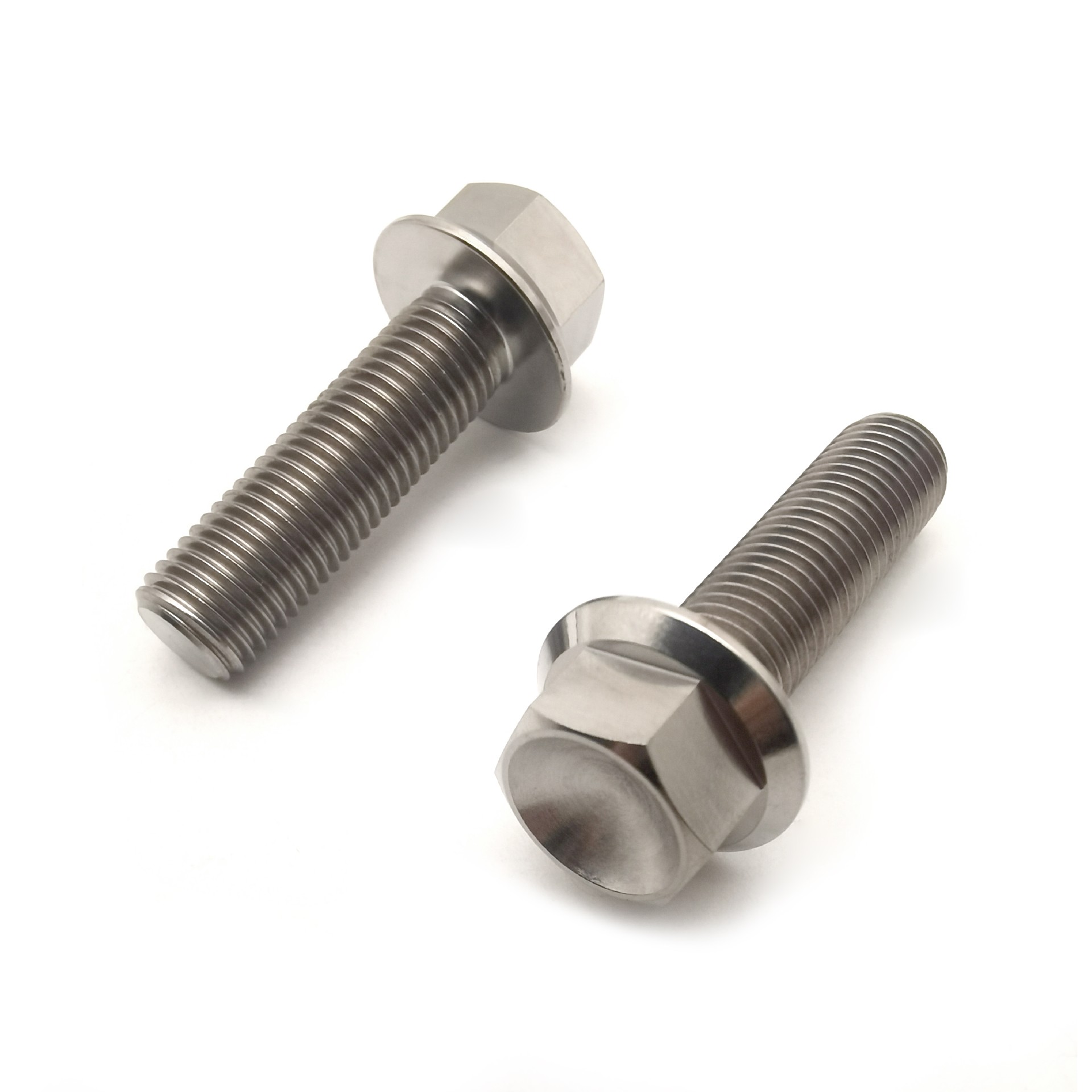

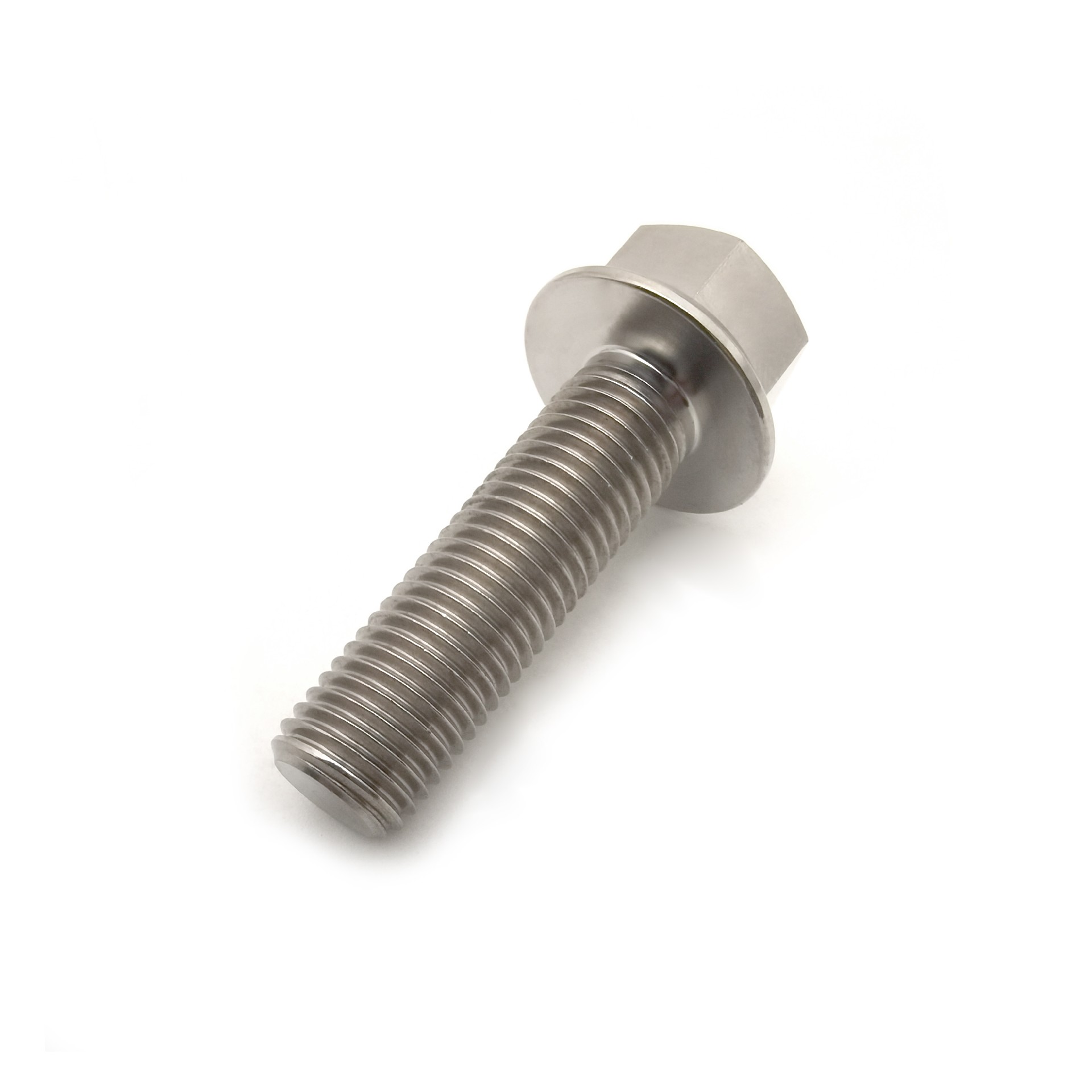

Product Name: DIN6921 Titanium Hex Flange Bolt M6

Material: Gr5 Titanium/Ti-6Al-4V

Standard: DIN 6921

Head Type: Flange head

Drive Style: Hex

System of Measurement: Metric

Thread Direction: RightHand

Thread Size: M6

Thread Pitch: 1mm

Thread Fit: Class 6g

Length: 8mm-100mm

Threading: Fully Threaded

Thread Spacing: Coarse

Head Width: 10mm

Head Height: 6.6mm

Density: 4.5g/cm3

Tensile Strength: 130,000psi

Hardness: Rockwell C36

Colour: Titanium Primary

Surface: Plain

Country of Origin: China


BJCJTi- Professional titanium alloy fastener manufacturer.

DIN6921 titanium hex flange head bolt is the most common titanium bolt, which is also our main product. The raw material is aerospace grade Gr5 Ti (Ti-6Al-4V), which has the advantages of light weight, high strength, corrosion resistance and high temperature resistance.

We can customize titanium flange bolt on the basis of DIN6921. titanium flange bolt in different colors can also be customized using anodizing and PVD.
