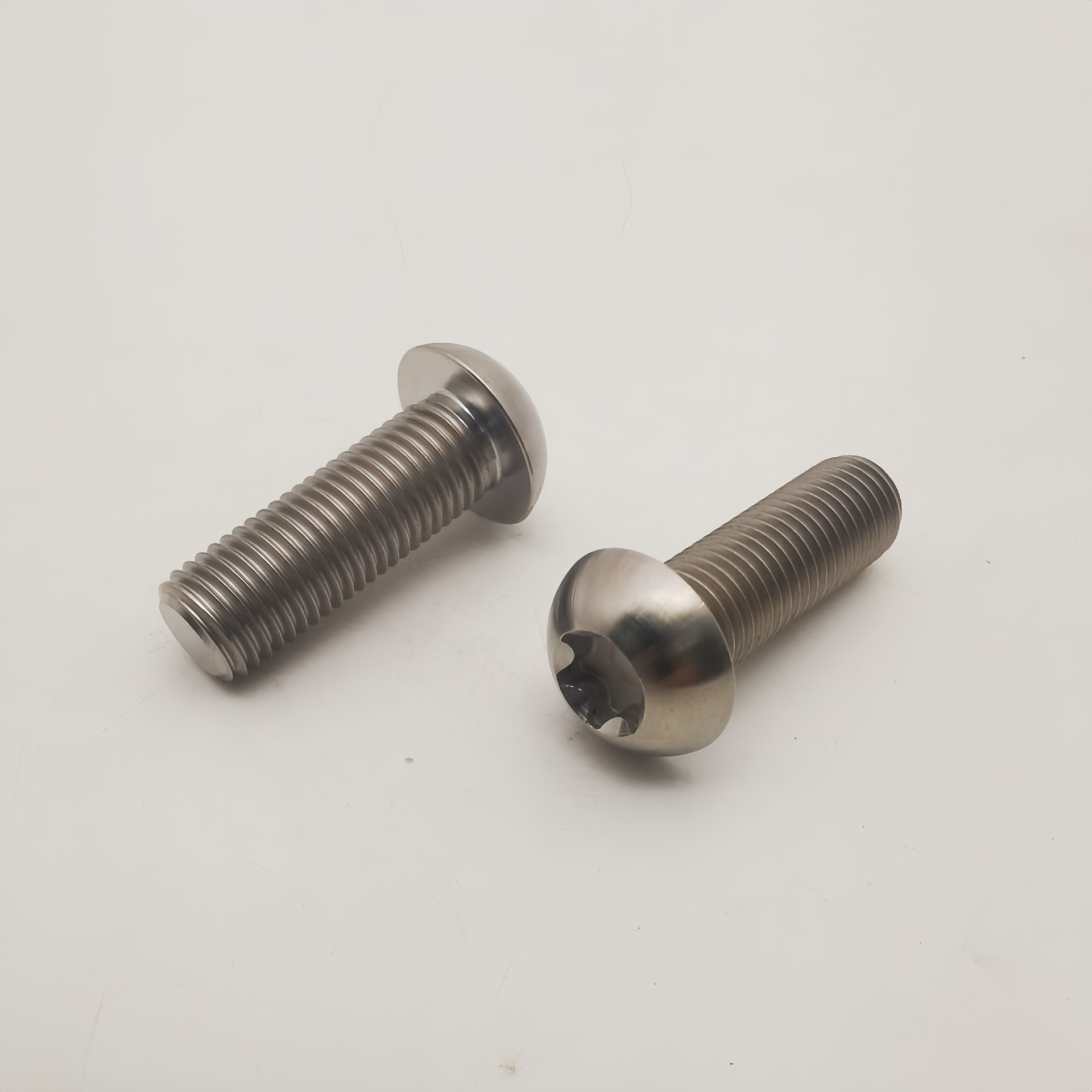

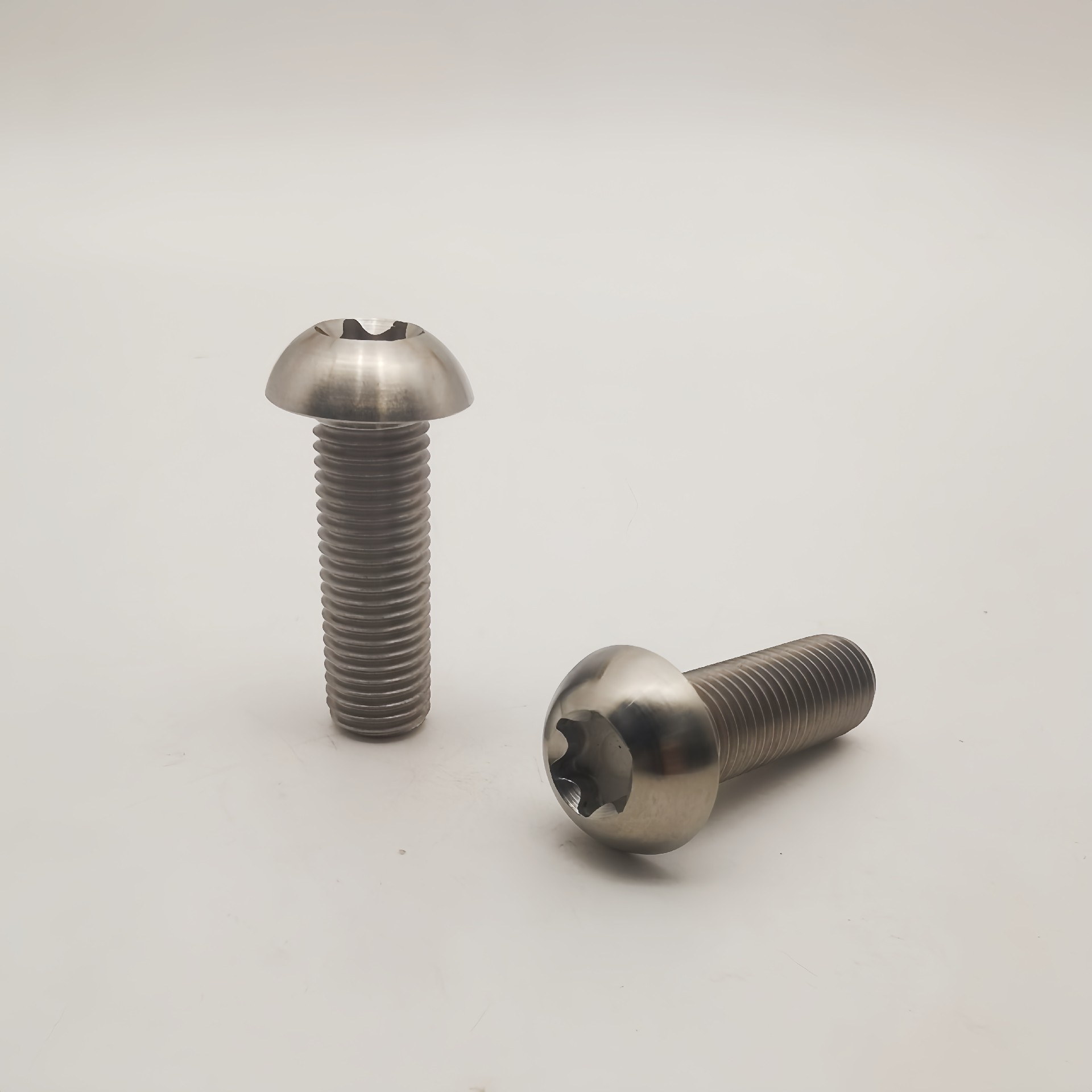

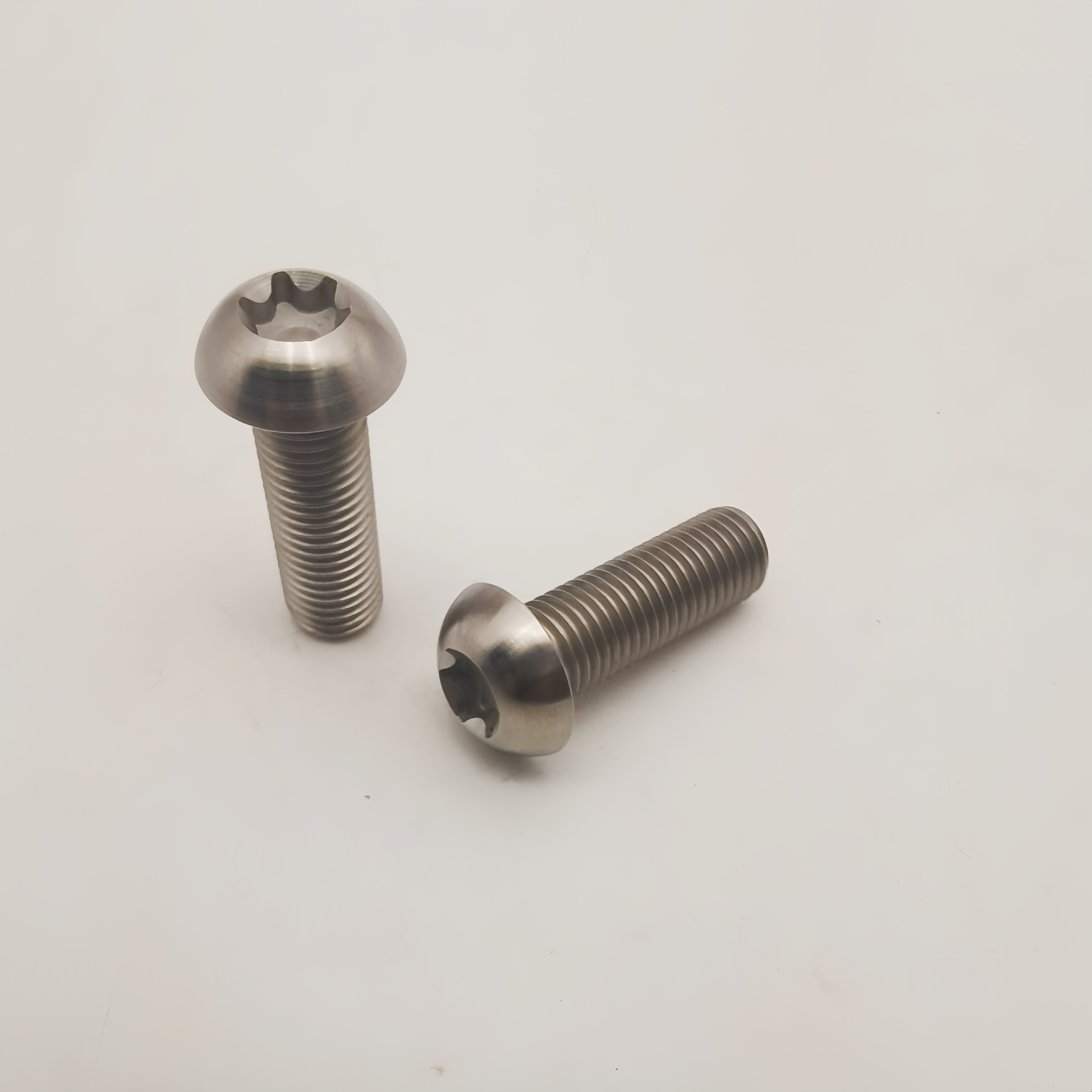

Product Name: ISO7380 Titanium Torx Button Head Screw M10

Material: Gr5 Titanium/Ti-6Al-4V

Standard: ISO7380

Head Type: Button Torx

Drive Style: Torx

System of Measurement: Metric

Thread Direction: RightHand

Thread Size: M10

Thread Pitch: 1.5mm

Thread Fit: Class 6g

Length: 5mm-100mm

Threading: Fully Threaded

Thread Spacing: Coarse

Head Width: 17.5mm

Head Height: 5.5mm

Density: 4.5g/cm³

Tensile Strength: 130,000psi

Hardness: Rockwell C36

Color: Titanium Primary

Surface: Plain

Country of Origin: China

BJCJTi- Professional titanium alloy fastener manufacturer.

ISO7380 titanium torx button head screw is a torx-type titanium button screw based on the ISO7380 Titanium button screw.

ISO7380 titanium torx button head screw is the most common titanium screw, which is also our main product. The raw material is aerospace grade Gr5 Ti (Ti-6Al-4V), which has the advantages of light weight, high strength, corrosion resistance, and high-temperature resistance.

We can customize titanium button screws based on ISO7380. titanium button screws in different colors can also be customized using anodizing and PVD.
