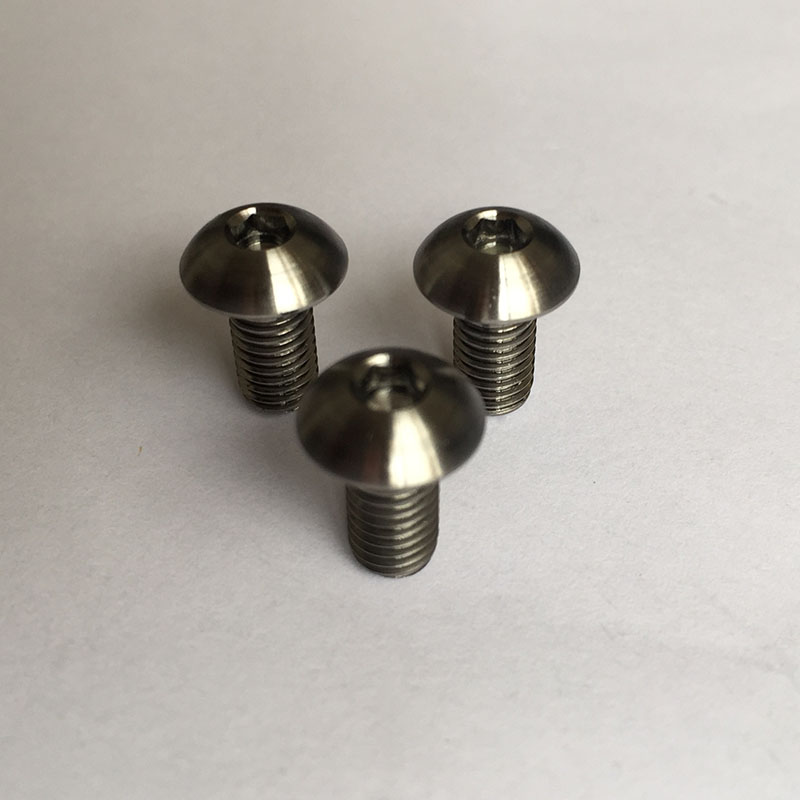

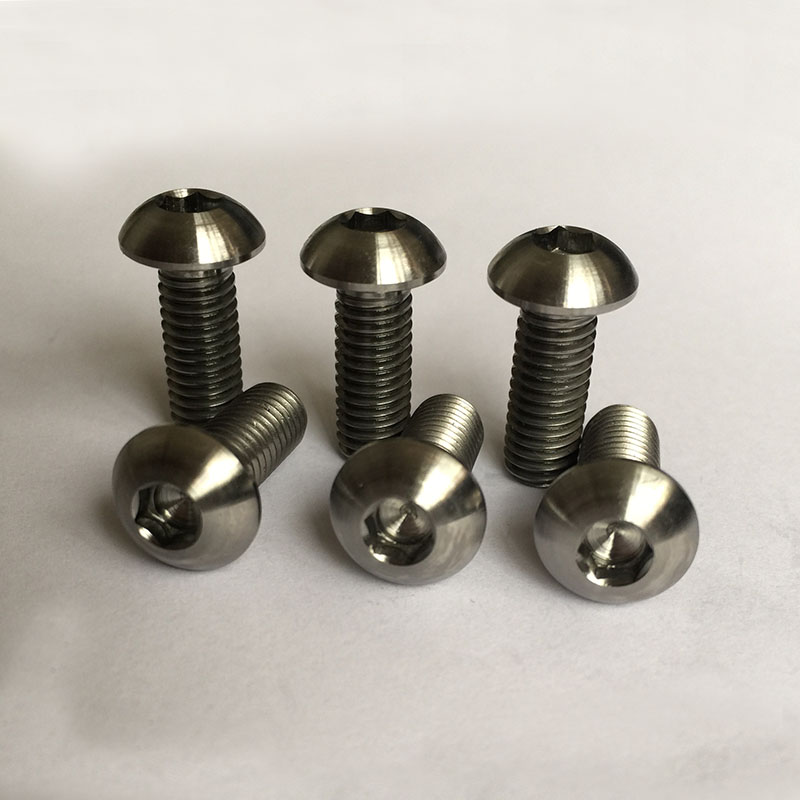

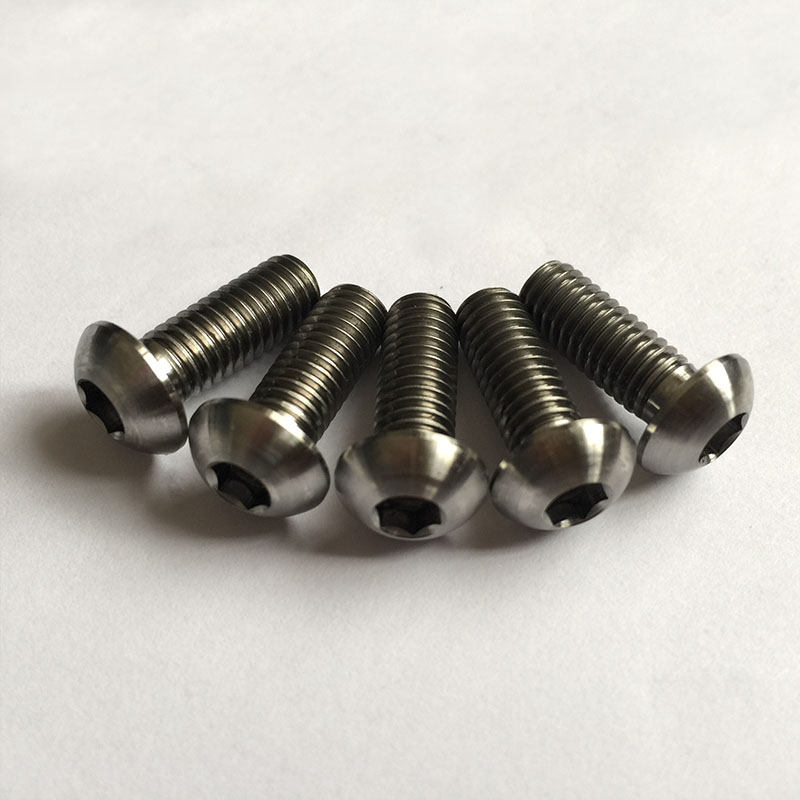

Product Name: ISO7380 Titanium Hex Button Head Screw M8

Material: Gr5 Titanium/Ti-6Al-4V

Standard: ISO7380

Head Type: Button

Drive Style: Hex

System of Measurement: Metric

Thread Direction: RightHand

Thread Size: M8

Thread Pitch: 1.25mm

Thread Fit: Class 6g

Length: 5mm-100mm

Threading: Fully Threaded

Thread Spacing: Coarse

Head Width: 14mm

Head Height: 4.4mm

Density: 4.5g/cm³

Tensile Strength: 130,000psi

Hardness: Rockwell C36

Color: Titanium Primary

Surface: Plain

Country of Origin: China

BJCJTi- Professional titanium alloy fastener manufacturer.

ISO7380 titanium hex button head screw is the most common titanium screw, which is also our main product. The raw material is aerospace grade Gr5 Ti (Ti-6Al-4V), which has the advantages of light weight, high strength, corrosion resistance, and high-temperature resistance.

We can customize titanium button screws based on ISO7380. titanium button screws in different colors can also be customized using anodizing and PVD.
